| Brand Name: | Anping Chengxin Supply |
| Elivery Time: | 15days after deposit |
| Payment Terms: | T/T or LC |
Material: Low carbon steel wire
Standard: AS/NZS 4671:2001 GRADE 500L
Main hole size: 150x150mm
Wire diameter: main wire 4mm, 5.3mm, 6.3mm, 7.5mm
Sheet size: 1.96m x 4.51m, 2.12m x 5.871m

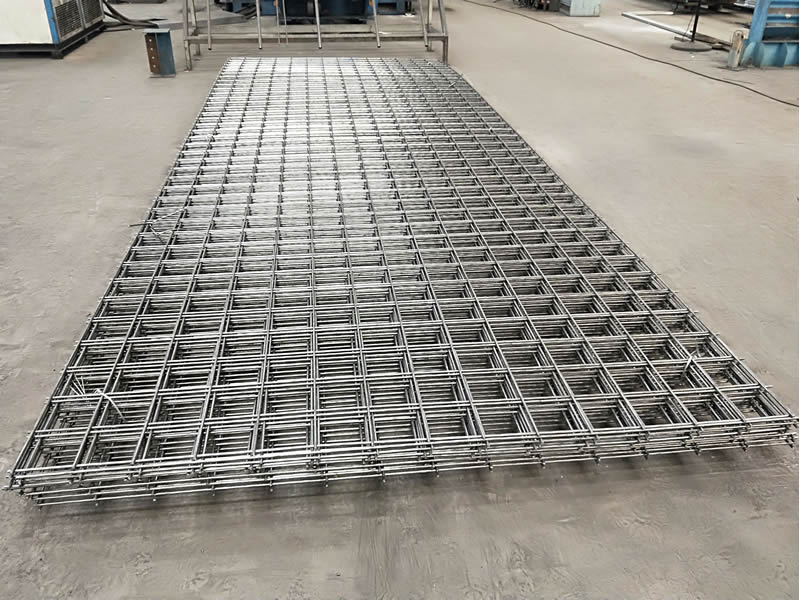

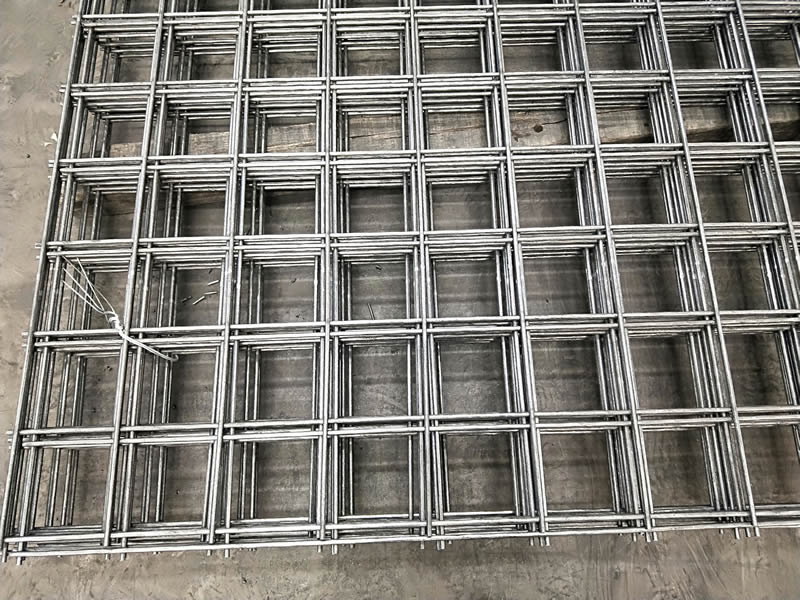

Reinforcing mesh is also called welded reinforcing mesh. Concrete 668 665 663 661 welded reinforcing mesh with square mesh pattern is a kind of welded wire fabric, which can improve the bonding to concrete, minimize the concrete cracking that may occur as a result of concrete shrinkage. And the standard of 668 665 663 661 welded reinforcing mesh is the size for New Zealand market. With flat even surface and firm structure, it is used extensively for reinforcement of road surfaces, masonry walls, and concrete structures in building.
Application:
Welded Wire Reinforcement can be used for:
Slab on Grade reinforcement
Floor and Walls Systems
Topping Slabs
Architectural precast wall panels
Tilt-up construction wall systems
Shear walls
Retaining walls
Mechanically Stabilized Earth (M.S.E.) reinforcement
| Product Code | Wire Diameter | Hole Size | Wire NO. | Length/Width | Details hole size |
| 668S | 4 | 150 | 31 | 1960 | 5+13*150+5 |
| 4 | 150 | 14 | 4510 | 5+30*150+5 | |
| 665S | 5.3 | 150 | 31 | 1960 | 5+13*150+5 |
| 5.3 | 150 | 14 | 4510 | 5+30*150+5 | |
| 663L | 6.3 | 150 | 40 | 2120 | 10+14*150+10 |
| 6.3 | 150 | 15 | 5870 | 10+39*150+10 | |
| 661L | 7.5 | 150 | 40 | 2120 | 10+14*150+10 |
| 7.5 | 150 | 15 | 5870 | 10+39*150+10 |
