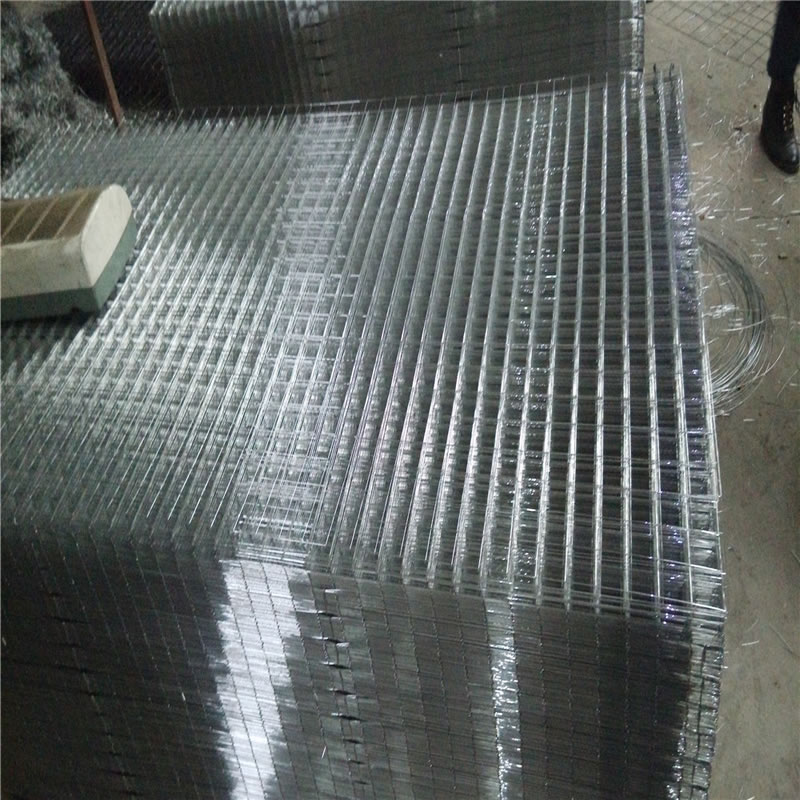

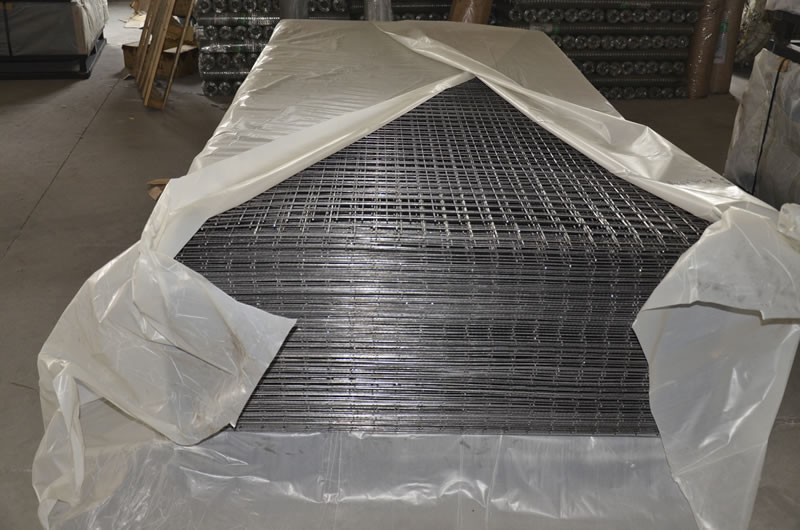

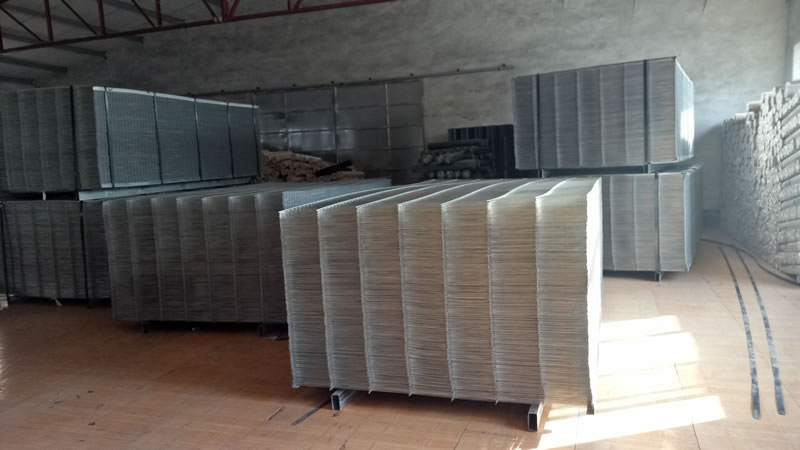

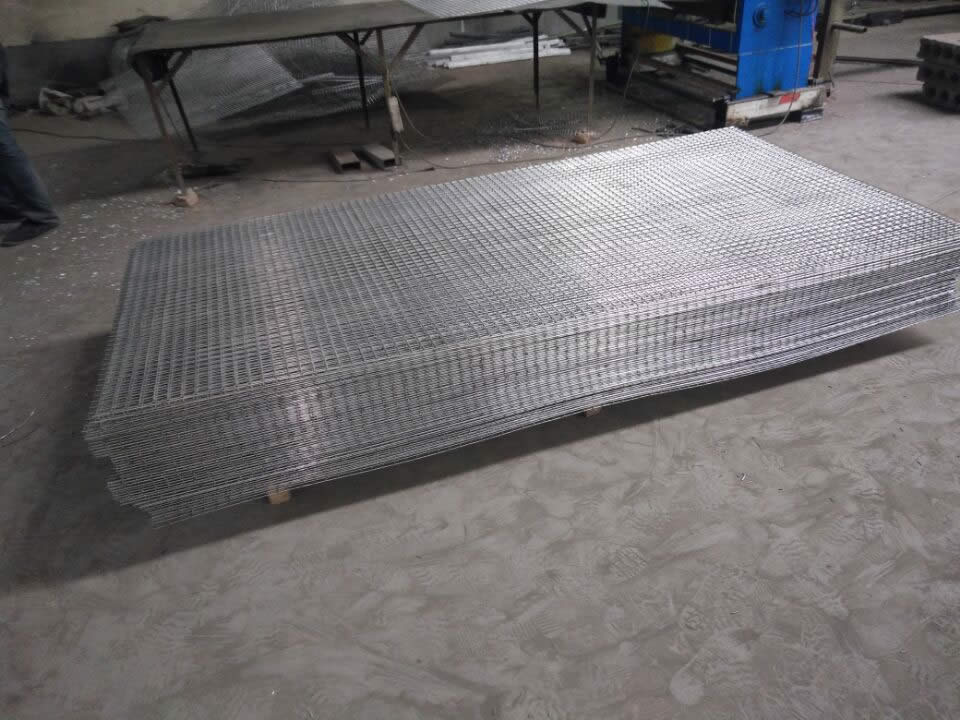

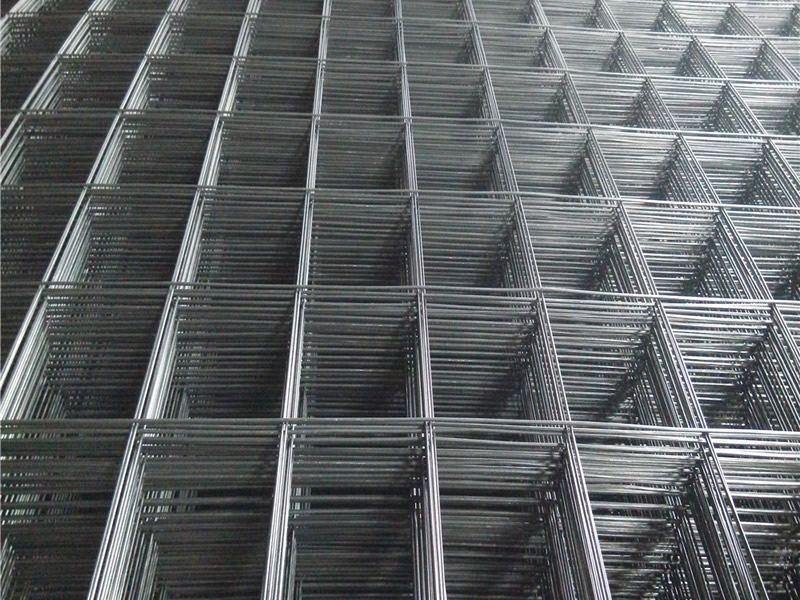

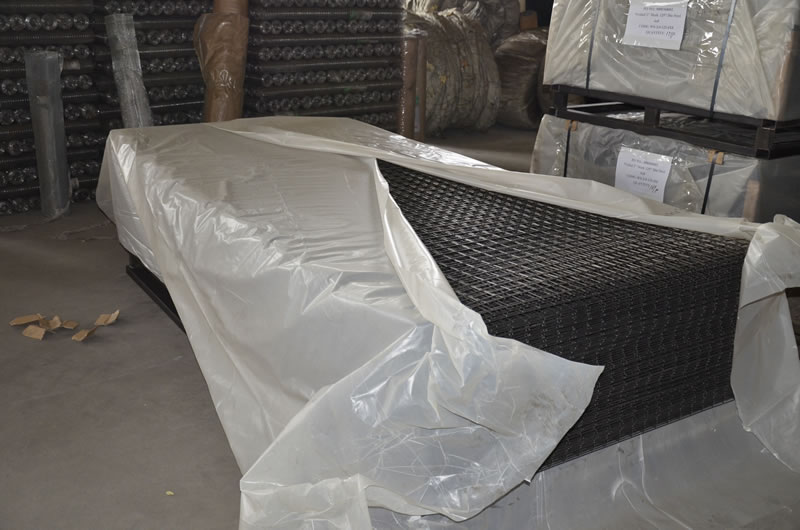

Welded Mesh Panel

Brand Name: Anping Chengxin Supply
Elivery Time: 15days after deposit
Payment Terms: T/T or LC

Welded wire mesh is used in Industry and Agriculture Building, Transportation and Mining for all such purposes as Poultry Houses, Egg Baskets, Runway Enclosures, Draining Rack, Fruit Drying screen, Fences, etc.

Assortments available:

Hot Dipped Galvanized After/Before Welding;
Electro Galvanized After/Before Welding;
PVC Coating With Green, Black, Color, Etc.

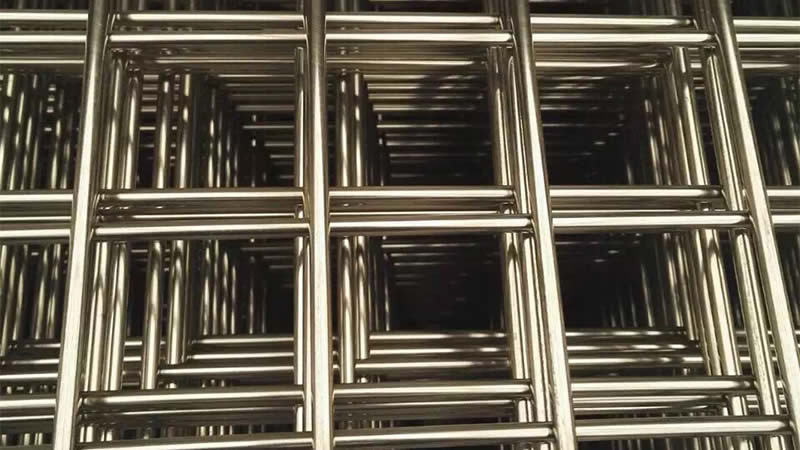

Welded Mesh made of Stainless Steel Wire.

Specification List of Welded Mesh Panel
Mesh Wire Diam
In Inch In mm Wire Gauge In mm
1" × 1" 25mm × 25mm 14# - 11# 2.0mm - 3mm
2" × 1" 50mm × 25mm 14# - 8# 2.0mm - 4mm
2" × 2 " 50mm × 50mm 14# - 8# 2.0mm - 4mm
3" × 2 " 75mm × 50mm 14# - 6# 2.0mm - 5mm
3" × 3 " 75mm × 75mm 14# - 6# 2.0mm - 5mm
4" × 2 " 100mm × 50mm 14# - 4# 2.0mm - 6mm
4" × 4 " 100mm × 100mm 14# - 4# 2.0mm - 6mm
5" × 5 " 125mm × 125mm 14# - 4# 2.0mm - 6mm
6" × 6 " 150mm × 150mm 14# - 4# 2.0mm - 6mm
Note: Special specifications can be customized.
